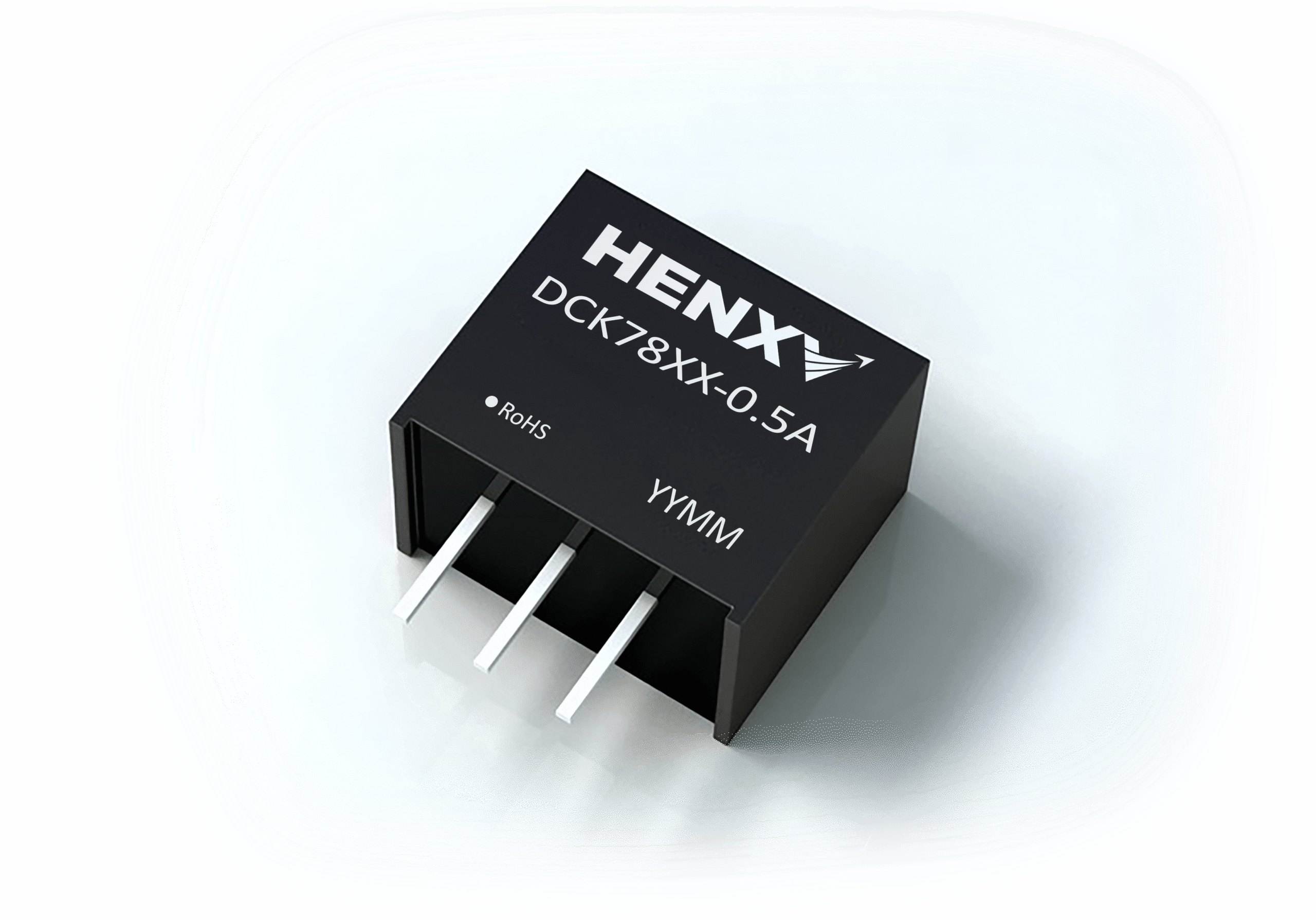

DCK7805-0.5A

Availability:

5 In stock


Linear Regulator Replacement DC DC Converter 1 Output 5V, -5V 500mA, 300mA 6.5V, 7V – 36V, 31V Input

156.00 (excluding 18% GST)

5 In stock

Compare

Description

Wide voltage input, output 500mA, non isolated/stabilized/single output/SIP3 packaging.

Features

1. Wide operating temperature range : -40℃ to +85°℃
2. Up to 95% efficiency
3. No load current as low as 0.2MA
4. Ripple as low as 30mVp-p
5. The pins are compatible with the LM78xx series and can be packaged with straight or curved pins

Specification

Type Linear Regulator Replacement
Number of Outputs 1
Voltage – Input (Min) 6.5V, 7V
Voltage – Input (Max) 36V, 31V
Voltage – Output 1 5V,-5V
Current – Output (Max) 500mA, 300mA
Power (Watts) 4 W
Applications ITE (Commercial)
Features SCP
Operating Temperature -40°C ~ 85°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.46″ L x 0.30″ W x 0.40″ H (11.6mm x 7.6mm x 10.2mm)
Part # Aliases K7805-500R3



Data Sheet

Note

* Product Images are shown for illustrative purposes only and may differ from actual product
