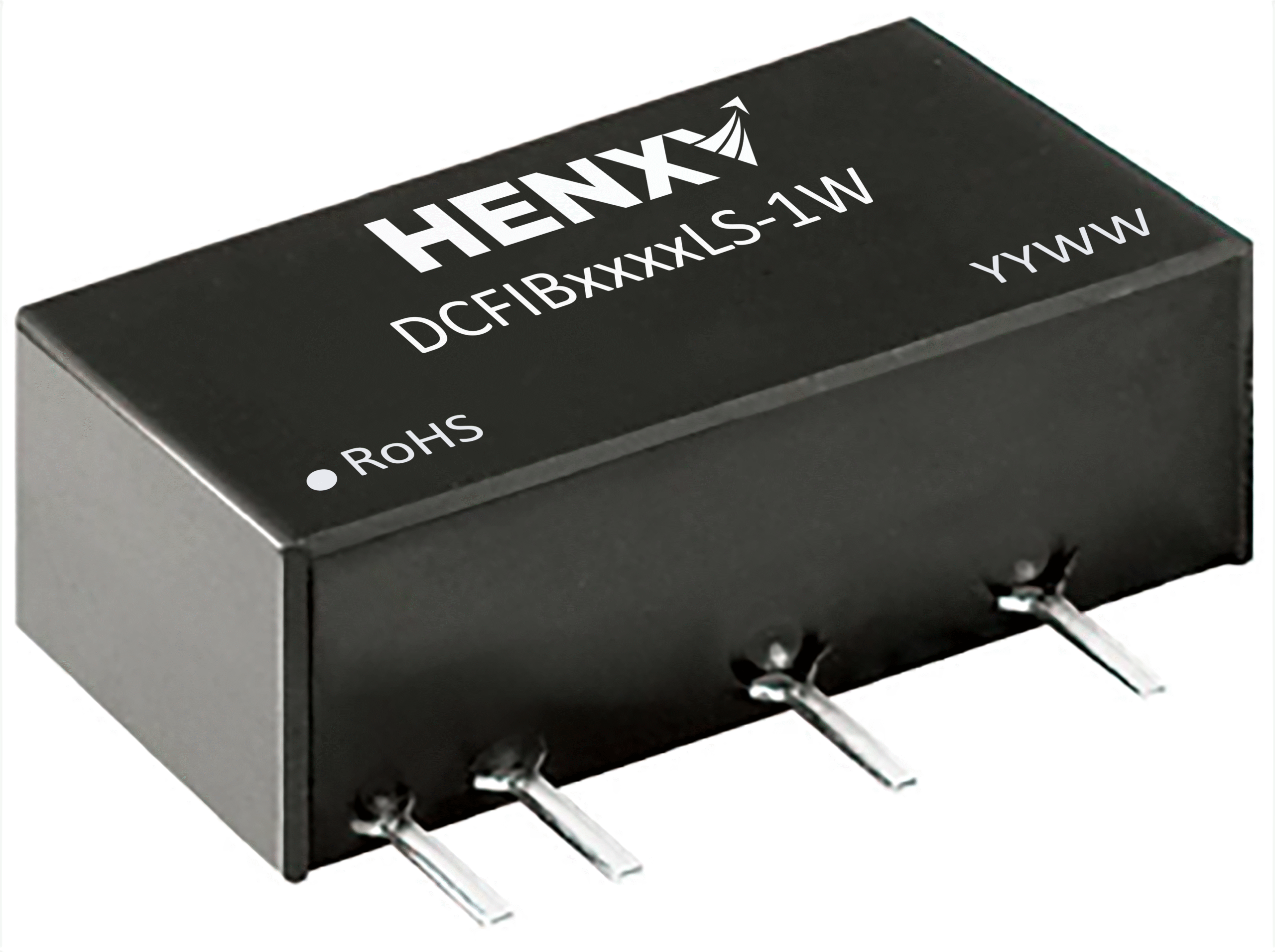

DCFIB0512LS-1W

Availability:

5 In stock


Isolated Module DC DC Converter 1 Output 12V 84mA 4.75V – 5.25V Input

213.00 (excluding 18% GST)

5 In stock

Compare

Description

Fixed voltage input, Output 1W, Isolated, Stabilized voltage, Single output, SIP package.

Features

1. Wide operating temperature range : -40℃ to +85℃
2. Up to 75% efficiency
3. No load current as low as 5MA
4. Ripple as low as 30mVp-p
5. Sustainable short-circuit protection

Specification

Type Isolated Module
Number of Outputs 1
Voltage – Input (Min) 4.75V
Voltage – Input (Max) 5.25V
Voltage – Output 1 12V
Current – Output (Max) 84mA
Power (Watts) 1 W
Voltage – Isolation 1.5 kV
Applications ITE (Commercial)
Operating Temperature -40°C ~ 85°C (With Derating)
Efficiency 72%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77″ L x 0.24″ W x 0.40″ H (19.7mm x 6.0mm x 10.2mm)
Part # Aliases IB0512LS-1WR3



Data Sheet

Note

* Product Images are shown for illustrative purposes only and may differ from actual product
