Features
- 1000VDC I/O isolation
- Internal SMD technology
- Built-in EMI filter
- Cooling by free air convection
- Non-conductive plastic case
- Single in line package
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / CE
- 2 years warranty
MEANWELL, More products of Meanwell, Power Supply

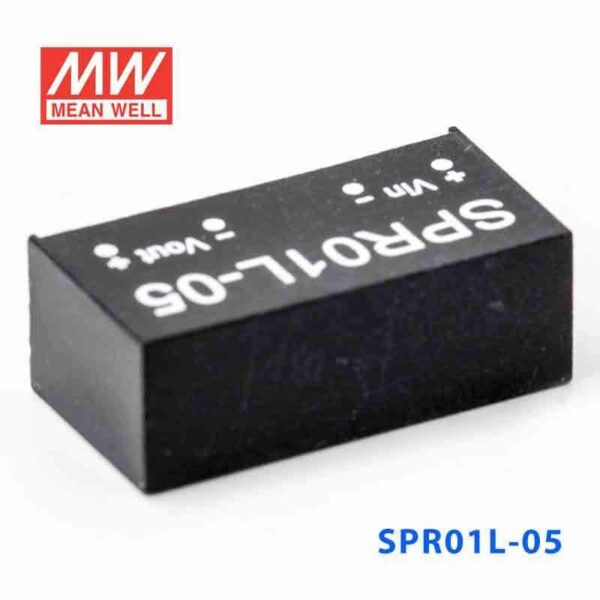

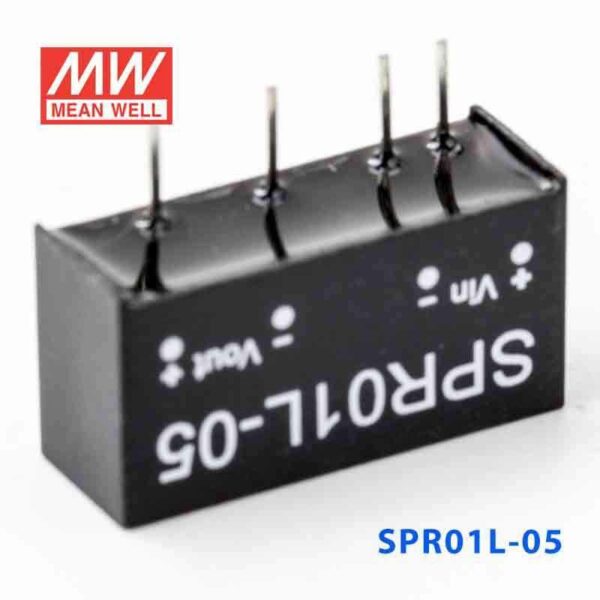

SPR01L-05
Availability:
10 In stock
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V – 5.5V Input
Note: Any order placed will take 12-15 days for dispatch.
(excluding 18% GST)
CompareSpecification
| Manufacturer: | MEAN WELL | |
| Product Category: | Isolated DC/DC Converters – Through Hole | |
| Mounting Style: | Through Hole | |
| Number of Outputs: | 1 Output | |
| Output Power: | 1 W | |
| Input Voltage, Min: | 4.5 V | |
| Input Voltage, Max: | 5.5 V | |
| Output Voltage-Channel 1: | 5 V | |
| Output Current-Channel 1: | 200 mA | |
| Isolation Voltage: | 1 kV | |
| Minimum Operating Temperature: | – 25 C | |
| Maximum Operating Temperature: | + 71 C | |
| Package/Case: | L-05IP-558 | |
| Length: | 19.6 mm | |
| Width: | 7.1 mm | |
| Height: | 10.2 mm | |
| Product: | Isolated | |
| Brand: | MEAN WELL | |
| Input Voltage: | 4.5 V to 5.5 V | |
| Packaging: | Tube | |
| Product Type: | Isolated DC-DC Converters | |
| Subcategory: | DC-DC Converter | |
| Unit Weight: | 2.300 g |
