Compare· 2:1 wide input range
· 4:1 wide input range(option)
. 1000VDC I/O isolation
· 3000VDC I/O isolation(option)
. Built-in EMI filter
. Protections: Short circuit / Overload
. Cooling by free air convection
. Five-sided shield metal case
· 100% burn-in test
. Low cost / High reliability
· Approvals: FCC / CE
· 2 years warranty

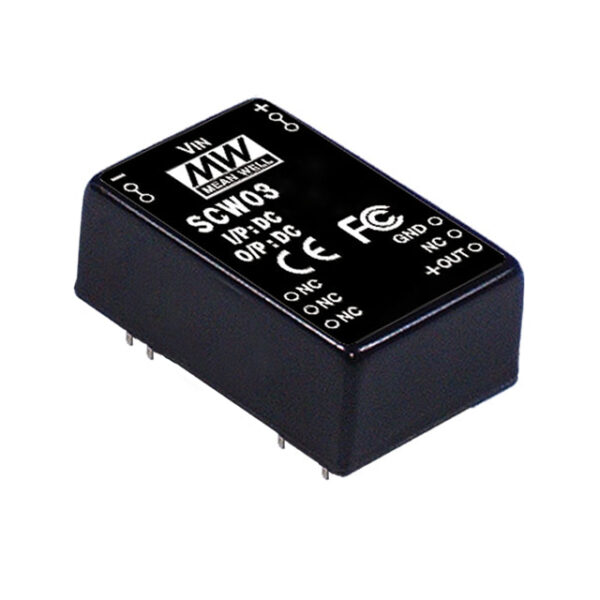

| Manufacturer: | MEAN WELL | |
| Product Category: | Isolated DC/DC Converters – Through Hole | |
| Mounting Style: | Through Hole | |
| Number of Outputs: | 1 Output | |
| Output Power: | 3 W | |
| Input Voltage, Min: | 36 V | |
| Input Voltage, Max: | 72 V | |
| Output Voltage-Channel 1: | 5 V | |
| Output Current-Channel 1: | 600 mA | |
| Isolation Voltage: | 1 kV | |
| Minimum Operating Temperature: | – 40 C | |
| Maximum Operating Temperature: | + 71 C | |
| Package/Case: | C-05IP-8 | |
| Length: | 31.8 mm | |
| Width: | 20.3 mm | |
| Height: | 12.2 mm | |
| Industry: | Industrial | |
| Product: | Isolated | |
| Brand: | MEAN WELL | |
| Input Voltage: | 36 V to 72 V | |
| Product Type: | Isolated DC-DC Converters | |
| Subcategory: | DC-DC Converter | |
| Unit Weight: | 15 g |
