PB-600-48

Availability:

2 In stock

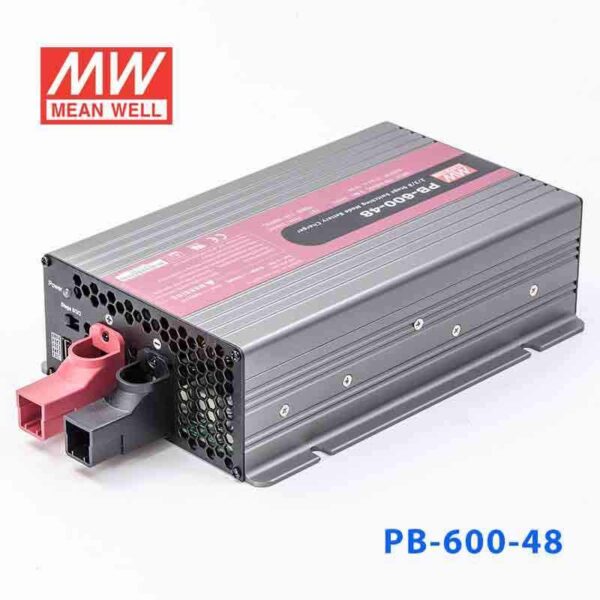

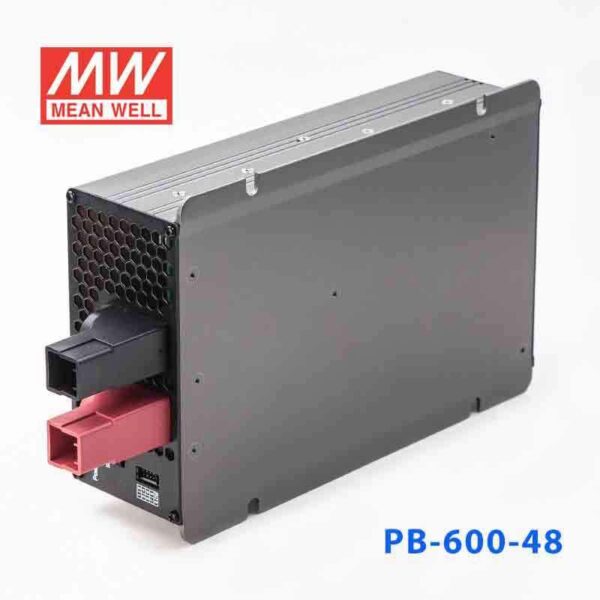

Mean Well PB-600-48 Battery Chargers 600W 57.6V 10.5A – 2/3/8 Stage W/PFC

Note: Any order placed will take 12-15 days for dispatch.

23,765.00 (excluding 18% GST)

2 In stock

Compare

Features

Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
2/3/8 stage charging
Built-in battery rescue function
Controlled by micriprocessor
Universal AC input / Full range
Built-in active PFC function PF>0.95
Protection: Short circuit / Reverse polarity / Over voltage / Over temperature
3-color LED loading indicator
Built-in remote ON-OFF control
Built-in temperature compensation function
Built-in fan speed control (depends on charging current)
3 years warranty

Specification

Manufacturer MEAN WELL USA Inc.
Packaging Box
Part Status Obsolete
Type Enclosed
Battery Chemistry Lead Acid, Lithium-Ion
Battery Cell Size 48V
Number of Cells 1
Voltage – Nominal 57.6V
Charge Current – Max 10.5A
Voltage – Input 90 ~ 264VAC, 127 ~ 370VDC
Power – Max 600W
Size / Dimension 9.06″ L x 6.22″ W x 2.64″ H (230.0mm x 158.0mm x 67.0mm)
Mounting Type Chassis Mount
Termination Style Screw Terminal
Features LED Indicator
Operating Temperature -20°C ~ 60°C
Approval Agency CE, UR, TUV
Weight 2200 g





Data Sheet

Note

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
