Description
AC-DC Single output Medical Open frame power supply; Output 12Vdc at 0.85A; PCB mount; 2xMOPP; NFM-10-12 is succeeded by NFM-10-12.
MEANWELL, More products of Meanwell, Power Supply
NFM-10-12
Availability:
Out of stock

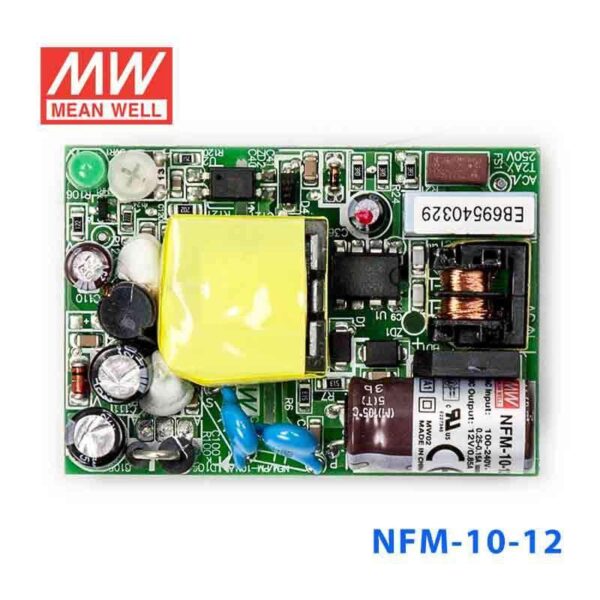

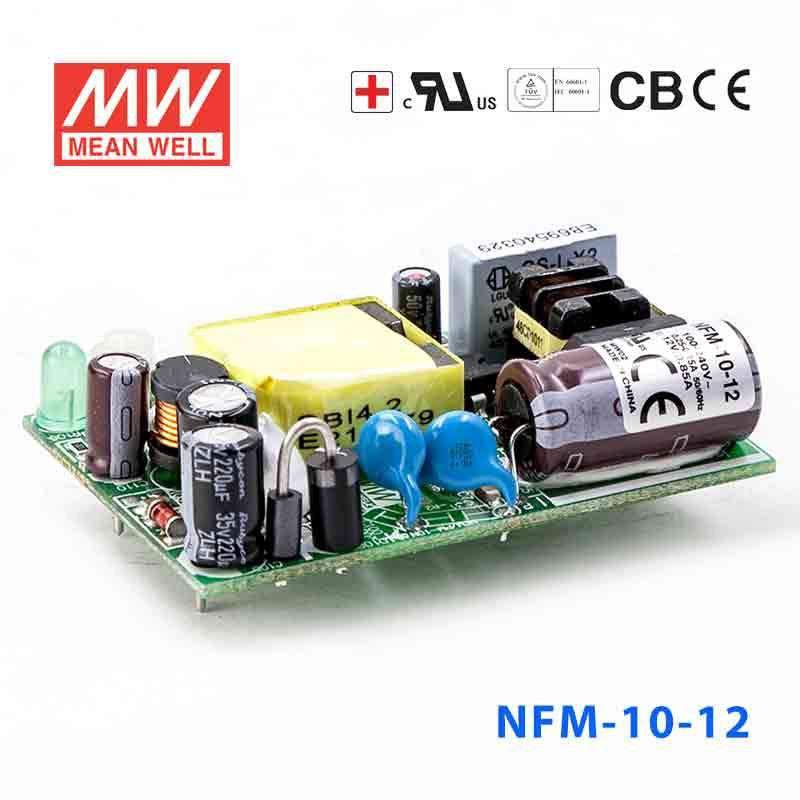

Mean Well NFM-10-12 Power Supply 10W 12V
Note: Any order placed will take 12-15 days for dispatch.
(excluding 18% GST)
CompareFeatures
· 3 years warranty
· Universal AC input / Full range
. Protections: Short circuit / Overload / Over voltage / Over temperature
· Ultra-miniature size, light weight
. Cooling by free air convection
. Isolation class II
· Medical safety approved (2 x MOPP between primary to secondary)
. No load power consumption<0.5W
· 100% full load burn-in test
* Fixed switching frequency at 67KHz
. High reliability
* Suitable for BF application with appropriate system consideration
Specification
| Manufacturer: | MEAN WELL | |
| Product Category: | Switching Power Supplies | |
| Output Voltage-Channel 1: | 12 VDC | |
| Number of Outputs: | 1 Output | |
| Output Power: | 10 W | |
| Open Frame/Enclosed: | Open Frame | |
| Input Voltage: | 85 VAC to 264 VAC, 120 VDC to 370 VDC | |
| Output Current-Channel 1: | 850 mA | |
| Mounting Style: | Chassis | |
| Length: | 65 mm | |
| Width: | 45 mm | |
| Height: | 22 mm | |
| Approvals: | EN60601-1, ES60601-1 | |
| Brand: | MEAN WELL | |
| Compliance: | EN60601-1, ES60601-1 | |
| Product Type: | Switching Power Supplies | |
| Subcategory: | AC-DC Power Supply | |
| Unit Weight: | 45 g |
