Description

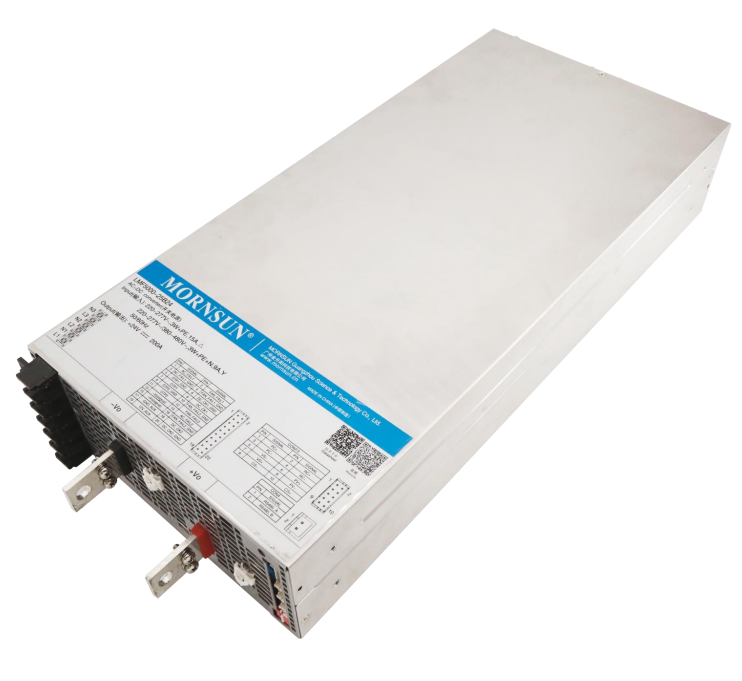

LMF5000-25B24 is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/EN/UL/BS EN62368 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
Features
Input voltage range: 3W+PE△196-305VACor 3W+N+PEY 340-530VAC or DC input 277-430VDC
Compatible with multiple input modes: 3-phase4-wire,3-phase 3-wire, single-phase and DC
PF value up to 0.98
Operating ambient temperature range: -40℃to+70℃
Low standby power consumption, high efficiency, low ripple & noise
20%-120% Ultra-wide range of voltage and current adjustment
Parallel current sharing up to 20000W(3+1)
485 communication
Double-sided conformal coating
High I/O isolation test voltage up to 4000VAC
Output short circuit, over-current, over-voltage, over-temperature protection
Operating altitude up to 5000m OVC Ⅱ
5 years warranty
Safety according to IEC/EN/UL/BS EN62368
Note
* Product Images are shown for illustrative purposes only and may differ from actual product
