Description

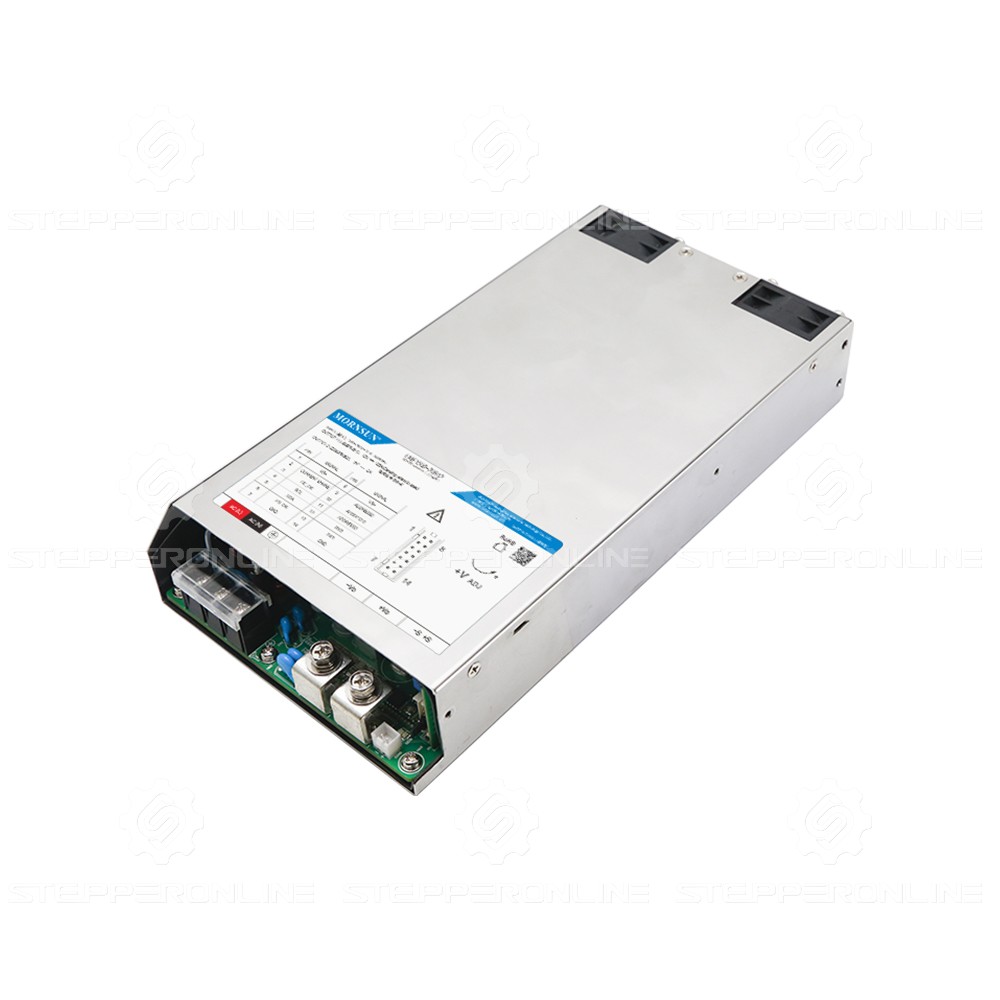

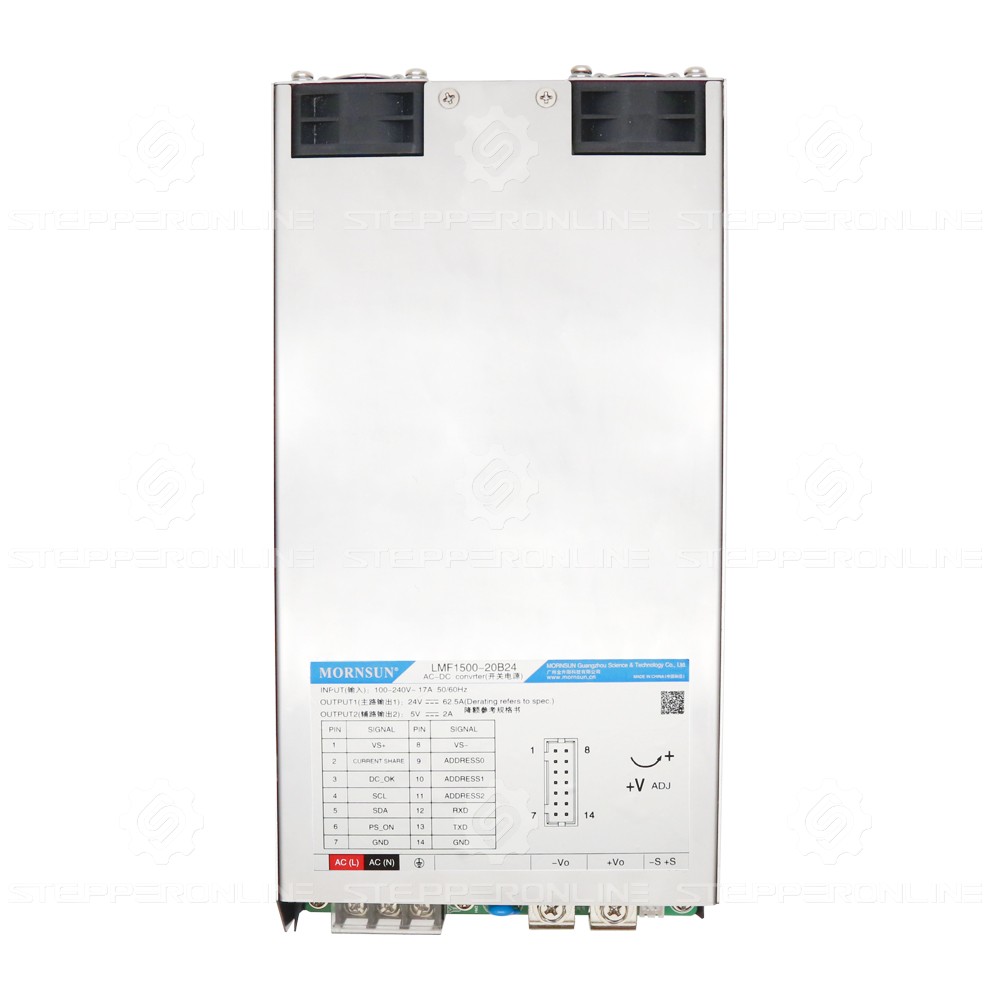

LMF1500-20B12 series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN/UL/BS EN62368, EN/ES/IEC60601, IEC60335, GB4943standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home. etc
Features
Wide input voltage range 85 – 264VACor 120- 370VDC
Accepts AC or DC input (dual-use of same terminal)
Built-in active PFC function
Operating ambient temperature range: -40℃to+70℃
High reliability, efficiency up to 94%
Output short circuit, 5s constant-current, over-voltage, over-temperature protection
Support 3+1 parallel redundancy, current sharing
Operating up to 5000m altitude
Fan speed automatic adjustable
5 years warranty
Design refer to IEC/UL62368, IEC60601, IEC60335, GB4943
Note
* Product Images are shown for illustrative purposes only and may differ from actual product
