Out of stock
₹8,462.00 (excluding 18% GST)
Out of stock

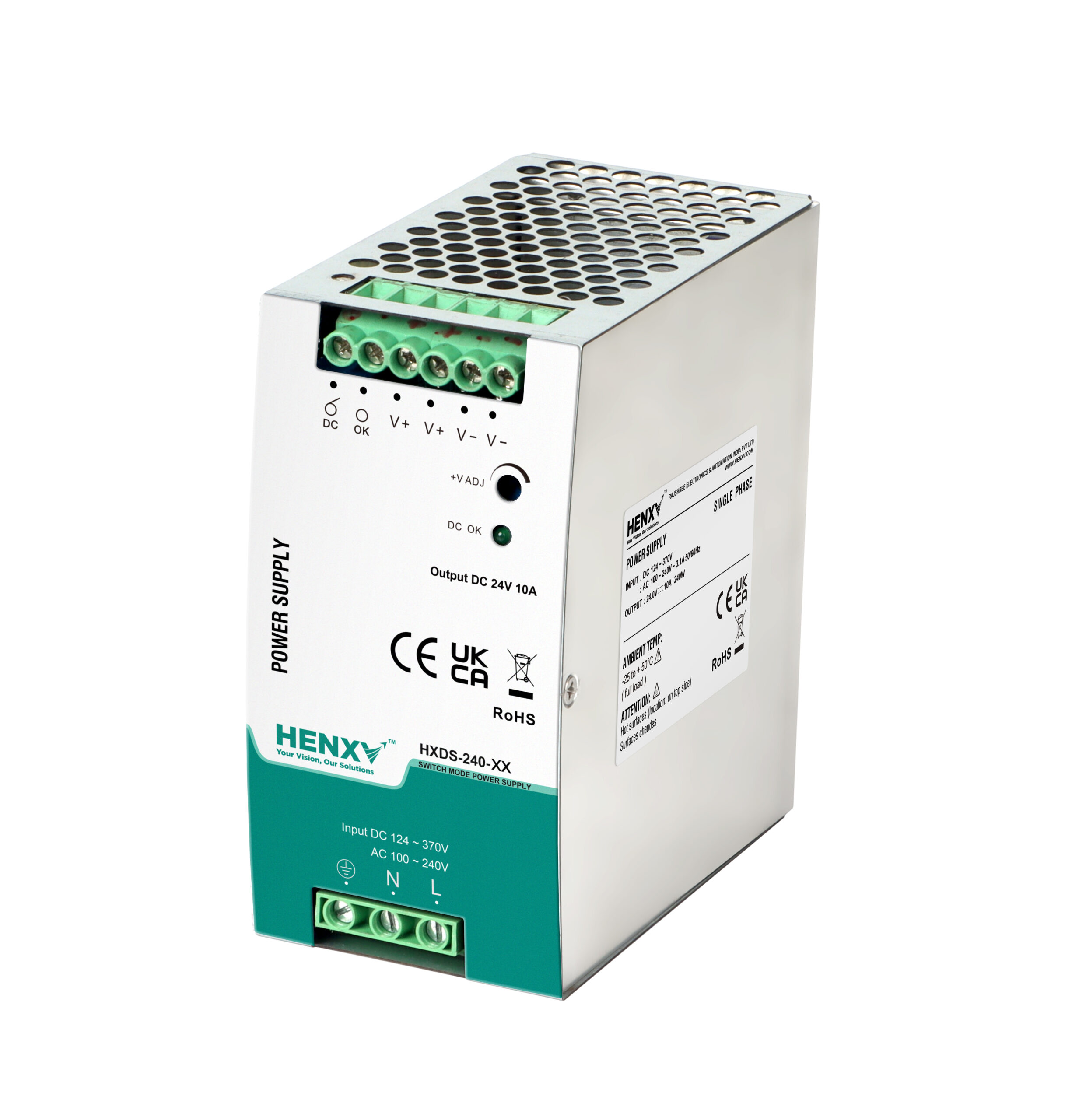

CompareHXDS-240-48 is a higher performance family of single phase din rail power supplies were designed with the metal housing and for full range AC input from 90VAC To 264VAC. With higher efficiency, the series have built-in DC OK relay contact and higher peak power, they also operate in wide temperature range. The series offer diverse solutions for demanding automation around the world.
| Input Type | AC or DC | |
| Number of Outputs | 1 | |
| AC Voltage – Input | 88 ~ 264 VAC | |
| DC Voltage – Input (Min) | 124V | |
| DC Voltage – Input (Max) | 370V | |
| Voltage – Output 1 | 48V | |
| Current – Output (Max) | 5A | |
| Power (Watts) | 240W | |
| Voltage – Isolation | 3 kV | |
| Applications | Industrial, ITE (Commercial) | |
| Efficiency | 94% | |
| Operating Temperature | -25°C ~ 70°C | |
| Features | Adjustable Output, PFC, Universal Input | |
| Part # Aliases | SDR-240-48 |
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
