Out of stock
₹13,375.00 (excluding 18% GST)
Out of stock

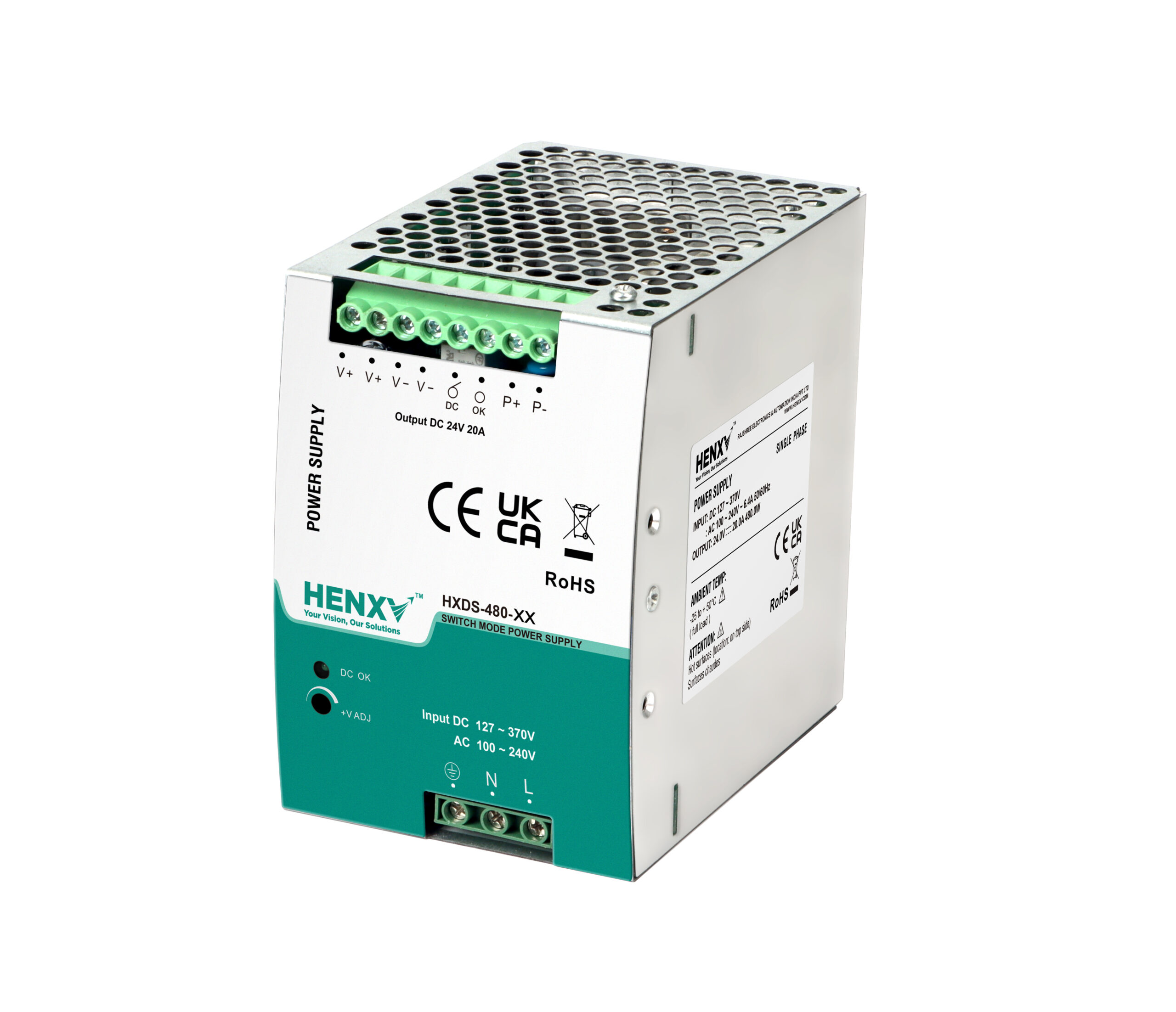

CompareHXDS-480-24 is a metal case power family designed with slim housing and for full range AC input from 90 VAC To 264 VAC. The series are single phase power supply, providing adjustable DC output voltage. They have high efficiency and operate in wide temperature range. The series can widely used for industrial automation & control systems, varied equipments etc.
| Input Type | AC or DC | |
| Number of Outputs | 1 | |
| AC Voltage – Input | 90 ~ 264 VAC | |
| DC Voltage – Input (Min) | 127V | |
| DC Voltage – Input (Max) | 370V | |
| Voltage – Output 1 | 24V | |
| Current – Output (Max) | 20A | |
| Power (Watts) | 480W | |
| Voltage – Isolation | 3 kV | |
| Applications | ITE (Commercial) | |
| Efficiency | 94% | |
| Operating Temperature | -25°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, PFC, Universal Input | |
| Part # Aliases | SDR-480-24 |
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
