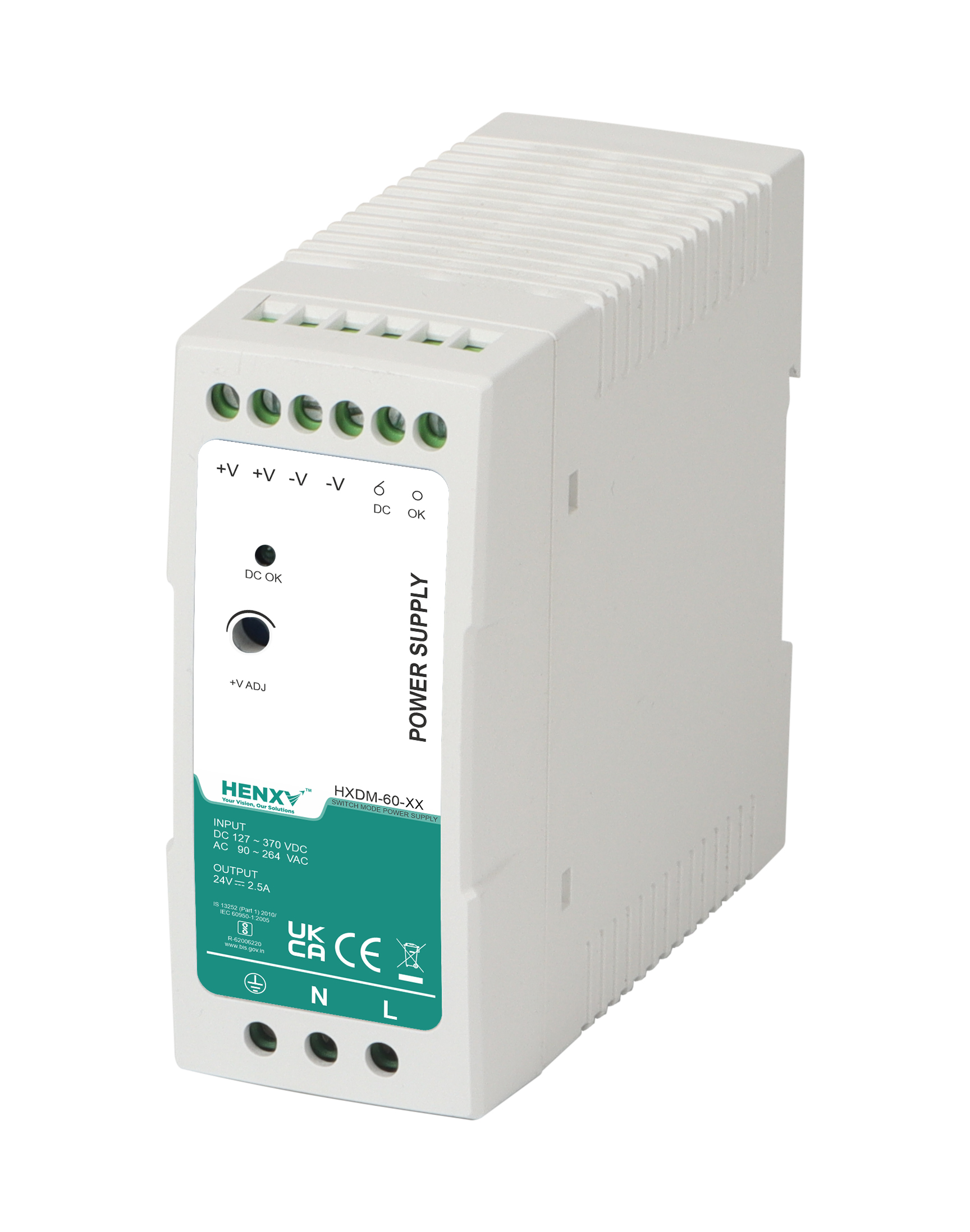

HXDM-60-24

Availability:

Out of stock


AC or DC DIN Rail Power Supply 1 Output 24V 2.5A

1,797.00 (excluding 18% GST)

Out of stock

Compare

Description

HXDM-60-24 is a slim line power family are designed with slim plastic housing and for full range AC input from 90VAC To 264VAC. The series are single phase PSU, providing DC OK relay contact and adjustable DC output voltage. They have high efficiency and operate in wide temperature range. The series can widely used for industrial automation & control systems, varied equipments etc.

Features

  • Universal AC Input/ Full Range
  • DC OK Signal Output
  • Protection: Short Circuit/Overload/ Over Voltage
  • Installation On DIN Rail TS-35/7.5 & 15
  • DC Output Voltage Adjustable
  • Isolation Class I
  • 4 Years Warranty
  • Works on DC Input (120~370VDC) also

Specification

Input Type AC or DC
Number of Outputs 1
AC Voltage – Input 85 ~ 264 VAC
DC Voltage – Input (Min) 120V
DC Voltage – Input (Max) 370V
Voltage – Output 1 24V
Current – Output (Max) 2.5A
Power (Watts) 60W
Voltage – Isolation 3 kV
Applications Hazardous Locations, Industrial, ITE (Commercial)
Efficiency 88%
Operating Temperature -20°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Part # Aliases MDR-60-24



Data Sheet

Note

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
