Description
MEAN WELL DRT-480 series DIN Rail Power Supply are 480W Single output Industrial DIN Rail Power Supply with high efficiency, long life, and high reliability.
MEANWELL, More products of Meanwell, Power Supply
DRT-480-48
Availability:
Out of stock

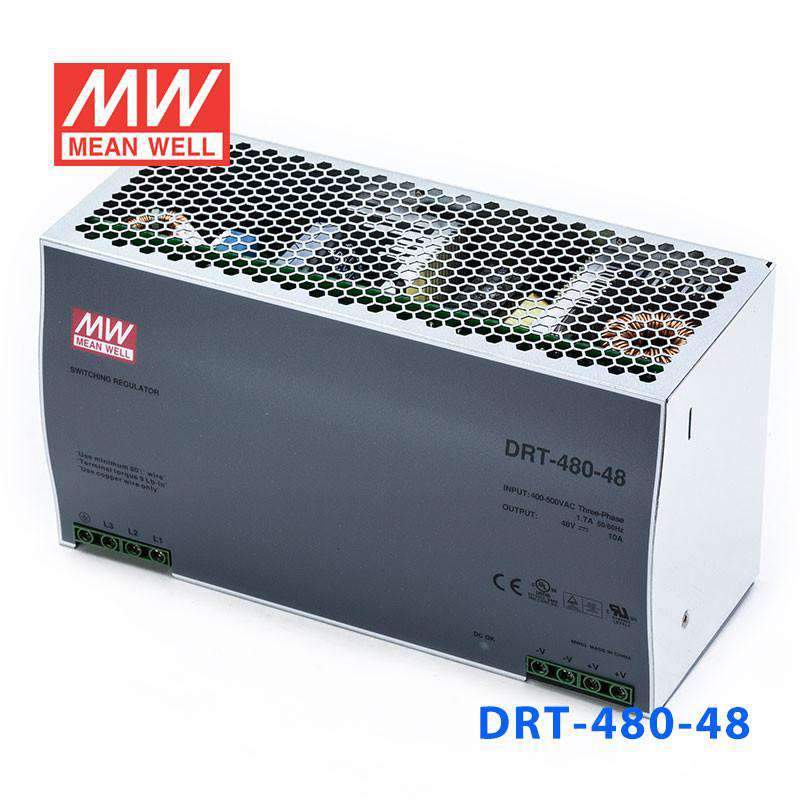

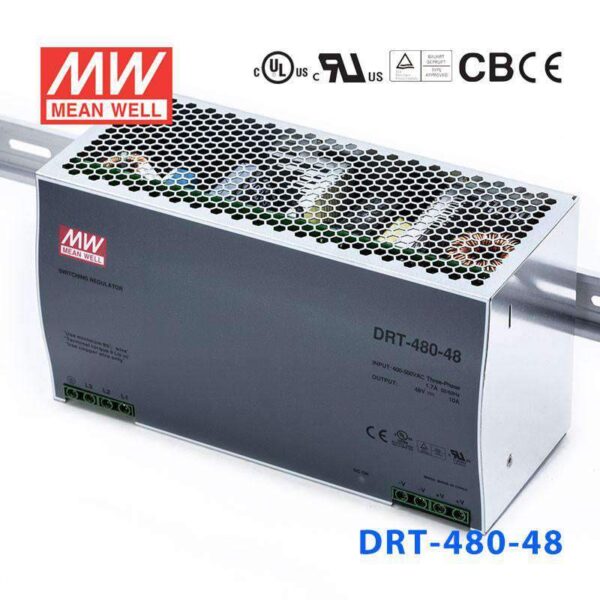

Mean Well DRT-480-48 Three Phase Industrial DIN RAIL Power Supply 480W
Note: Any order placed will take 12-15 days for dispatch.
(excluding 18% GST)
CompareFeatures
- Three-Phase AC 340 ~ 550V wide range input
- High efficiency 89% and low dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
- Fixed switching frequency at 70KHz
- 3 years warranty
Specifications
| Manufacturer: | MEAN WELL | |
| Product Category: | DIN Rail Power Supplies | |
| Product: | Switching Supplies | |
| Input Type: | 3-Phase / Three Phase | |
| Output Power: | 480 W | |
| Input Voltage: | 340 VAC to 550 VAC, 480 VDC to 780 VDC | |
| Number of Outputs: | 1 Output | |
| Output Voltage-Channel 1: | 48 VDC | |
| Output Current-Channel 1: | 10 A | |
| Industry: | Industrial | |
| Length: | 227 mm | |
| Width: | 125.2 mm | |
| Height: | 100 mm | |
| Series: | DRT-480 | |
| Brand: | MEAN WELL | |
| Mounting Style: | DIN Rail Mount | |
| Product Type: | DIN Rail Power Supplies | |
| Subcategory: | AC-DC Power Supply | |
| Unit Weight: | 2.5 kg |
