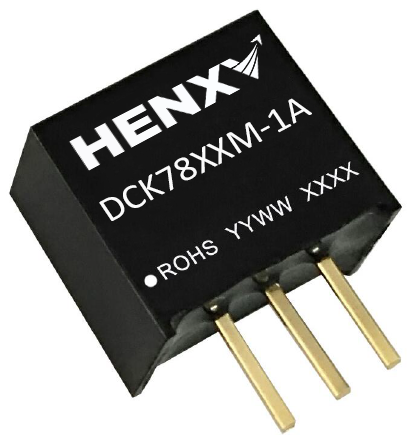

DCK7803M-1A

Availability:

5 In stock


Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 1A 6V – 36V Input

180.00 (excluding 18% GST)

5 In stock

Compare

Description

Wide voltage input, output 1000mA, non isolated/stabilized/single output/SIP3 packaging.

Features

1. Wide operating temperature range : -40℃ to +85℃
2. Up to 95% efficiency
3. No load current as low as 0.2MA
4. Ripple as low as 30mVp-p
5. The pins are compatible with the LM78xx series and can be packaged with straight or curved pins

Specification

Type Non-Isolated PoL Module
Number of Outputs 1
Voltage – Input (Min) 6V
Voltage – Input (Max) 36V
Voltage – Output 1 3.3V
Current – Output (Max) 1A
Power (Watts) 3.3 W
Applications ITE (Commercial)
Features SCP
Operating Temperature -40°C ~ 85°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.46″ L x 0.31″ W x 0.41″ H (11.6mm x 8.0mm x 10.4mm)
Part # Aliases K7803M-1000R3



Data Sheet

Note

* Product Images are shown for illustrative purposes only and may differ from actual product
